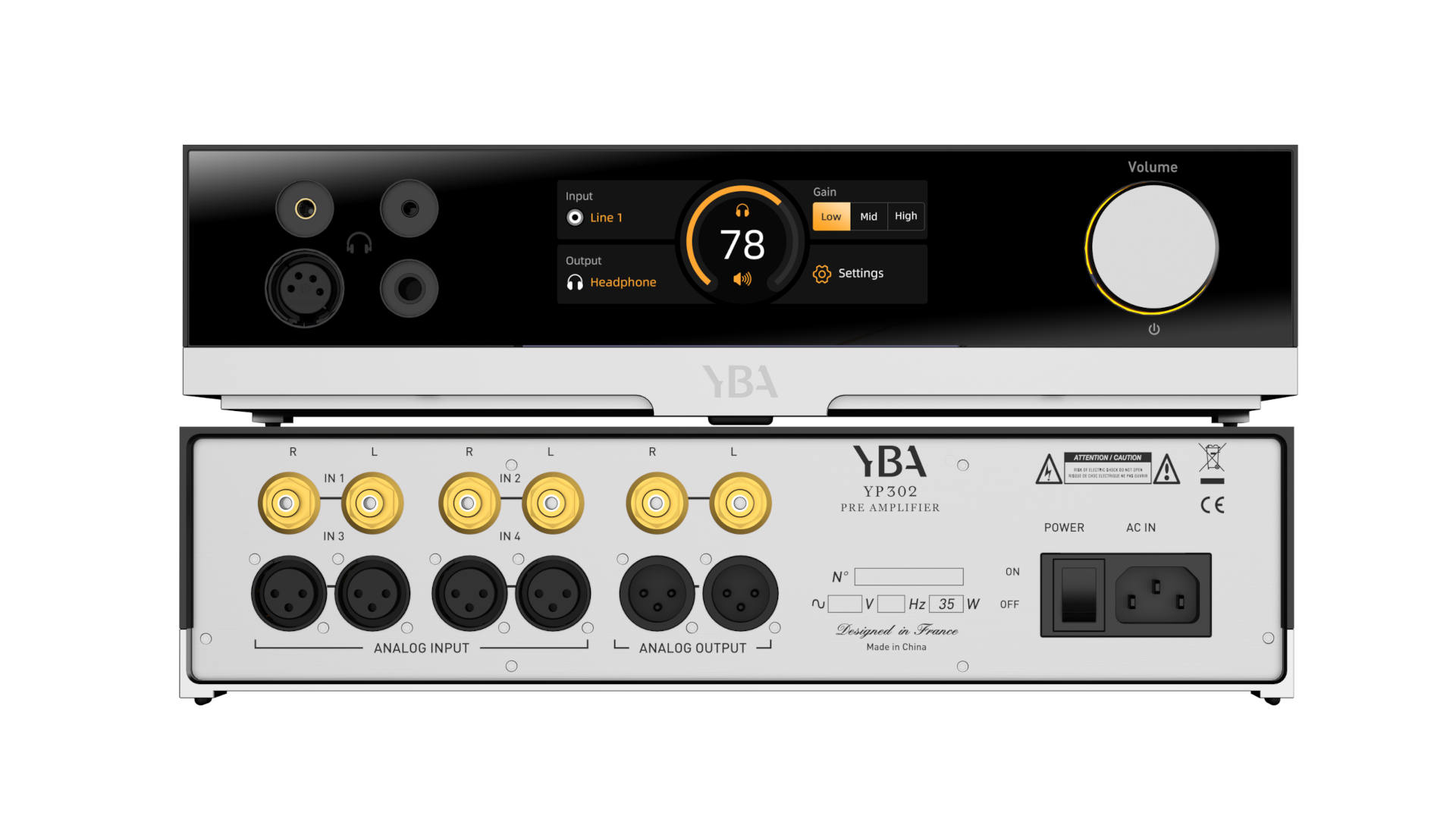

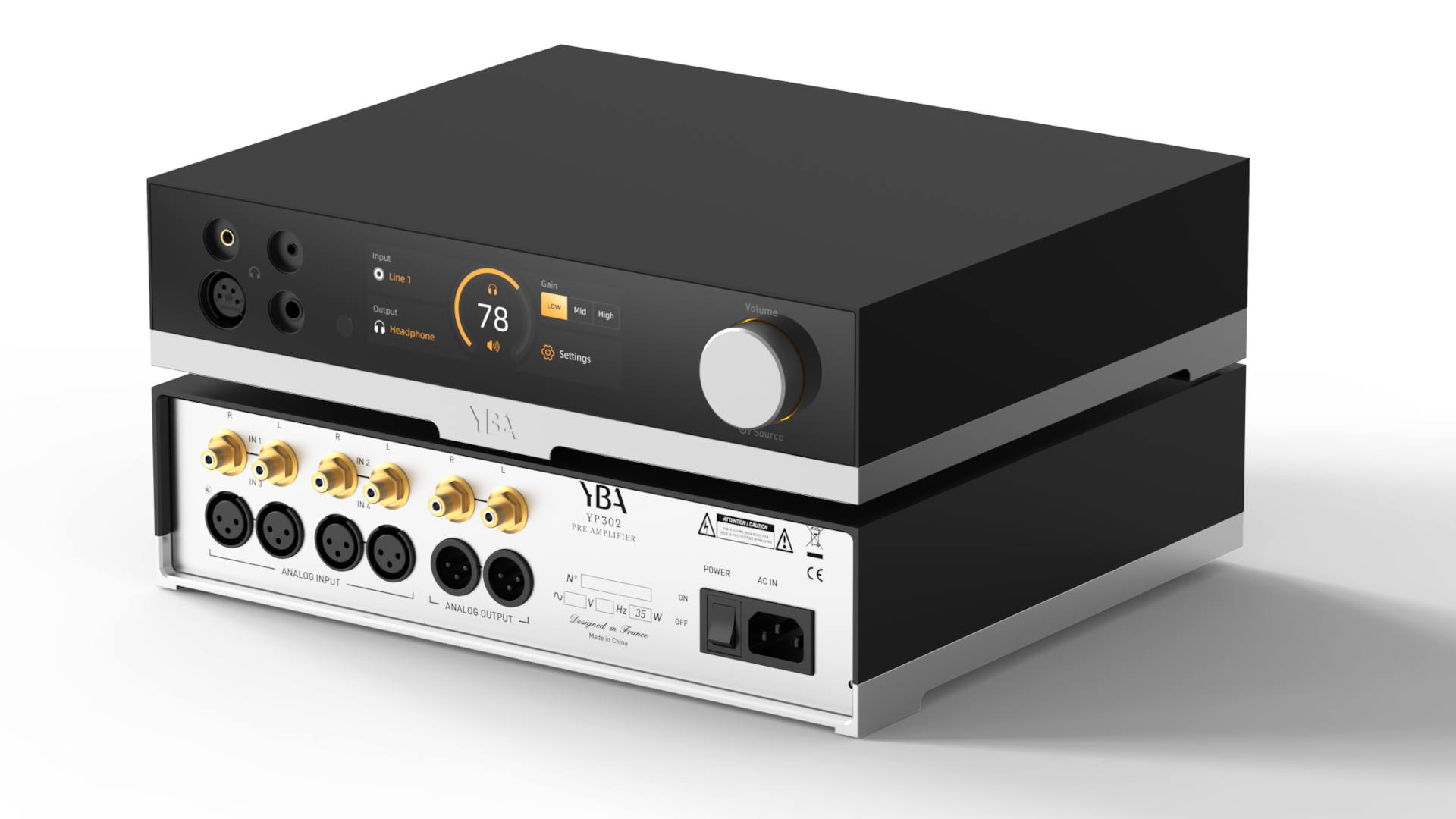

Design YP302 Pre-Amplifier & Headphone Amplifier

Released Spring 2025

YBA YP302 serves as a core part of any bigger Hi-Fi setup, with a range of inputs and outputs for smooth interconnection between all the components. It also find its ideal place in YBA Design line, acting as a pre-amplifier between YD302 DAC and YA302 Integrated Amplifier.

SKU: N/A Category:
Description

High-End Headphone Amplifier

As the first dedicated headphone amplifier by YBA, YP302 was designed and thoroughly tested with some of the world’s best audiophile headphones. From easy to drive to the most demanding, ranging from dynamic drivers to the most advanced planars, optimizing the YBA amplifier to always provide the ultimate performance thanks to its 7.3W @ 32Ohm powerful output.

Quarter of Headphone Outputs

Following the highly demanding standards of the headphone market, YBA YP302 makes sure to provide a wide range of headphone outputs for ideal matching to any Hi-Fi cable.

Featuring: 4.4mm Balanced, 4-pin XLR Balanced, 6.35mm Single-Ended, 3.5mm Single-Ended

Only the Top Components

From the stable German 48VA UI Transformer, over highly precise PGA2320 volume control, to the truly unique YBA capacitors, every aspect of YBA YP302 was created following the same extremely strict demands of Yves-Bernard André.

Additional information
Product type

Headphone Amplifier, Preamplifier

Audio Inputs

2 Pairs of XLR & 2 pairs of RCA

Audio Outputs

1 Pair of XLR & 1 pair of RCA

Headphone Outputs

4.4mm & 4-pin XLR Balanced, 6.35mm & 3.5mm Single-Ended

Power output

3.5mm & 6.35mm Headphone Amp – 2.5W @32Ω (9.4V@32Ω) //
330mW @300Ω (10V@300Ω)
4.4mm & XLR Headphone Amp – 7.3W @32Ω (15.3V@32Ω) //
1200mW @32Ω (19V@300Ω)

Output Level

RCA – 4V // XLR – 8V

SNR

>105dB

Frequency Response

20 Hz – 40 kHz (-1dB)

THD+N

0.0004%

Output Impedance

3.5mm & 6.35mm Headphone Amp – 2.2 Ohm
4.4mm & XLR Headphone Amp – 4.4 Ohm

Power Supply

48VA UI-Type Transformer

Display

5.0-Inch Touch Screen

Dimensions (w x d x h)

320mm x 260mm x 80mm

Weight

6 kg
